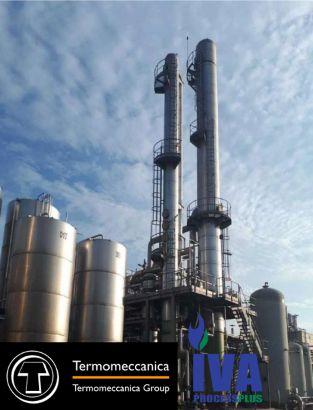

ETHANOL - WATER DISTILLATION PLANT

Process Data

• Operation: Continuous Double Effects
• Type: Sieve Trays
• Capacity: 3000 kg/h
• Operating pressure: Atm.
• Top operating Temperature: 78 °C
• Bottom operating Temperature: 100 °C
• Recovered Ethanol: >98%
• Concentration of Recovered Ethanol: >95% wt.
• Material of construction: AISI 304 SS

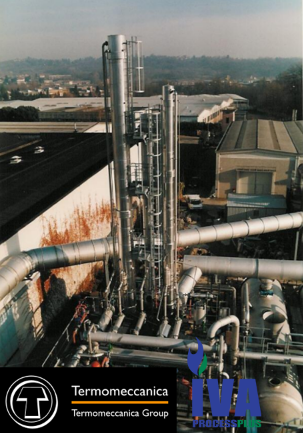

DMF / NMP - WATER DISTILLATION PLANT

Process Data

• Operation: Continuous
• Type: Sieve Trays
• Capacity: up to 9000 kg/h
• Operating pressure: Vacuum
• Top operating Temperatur: about 56 °C
• Bottom operating Temperature: about 105 °C
• Recovered DMF: >99%.
• Concentration of Recovered DMF: >99% wt.
• Material of construction: AISI 316-304 SS

Adsorption Plants

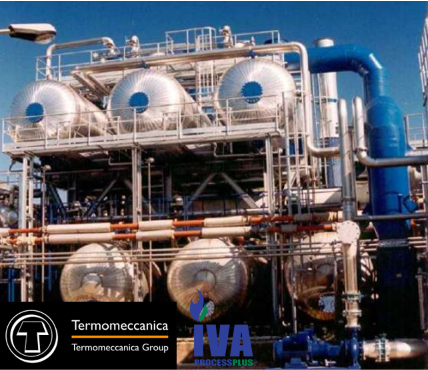

HEXANE RECOVERY PLANT

Process data

• Operation: Continuos
• Type: Steam regeneration
• Capacity: 200000 Nm3/h
• Number of adsorbers: 5
• Solvent Inlet concentration: 5 g/Nm3
• Recovery percentage: >96%
• Steam Specific Consumption: 3.5 kgsteam/kgsolvent

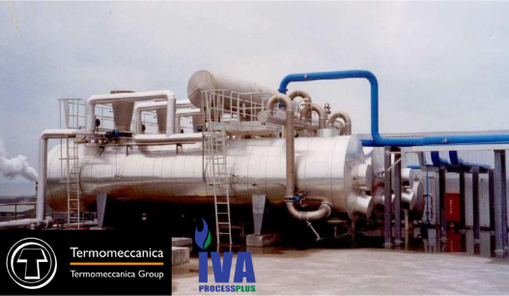

TOLUENE RECOVERY PLANT

Process data

• Operation: Continuos
• Type: Steam regeneration
• Capacity: 200000 Nm3/h
• Number of adsorbers: 3
• Solvent Inlet concentration: 5 g/Nm3
• Recovery percentage: >96%
• Steam Specific Consumption: 3.5 kgsteam/kgsolvent
