Incinerator

INCINERATORS

Incineration of organic liquid wastes or acqueous wastes polluted by organic compounds;

Typical Processed Stream

• Waste Liquid
• Vent stream
• Stream containing Chlorinated compounds
• Water contaminated by organics
• Stream containing Nitrogen compounds

Process Solution

• Static Chamber with Injection Nozzles for Waste liquid and Toroidal Distributor for Vent streams
• Afterburner
• Heat Recovery
• Flue gases treatment

Process Data

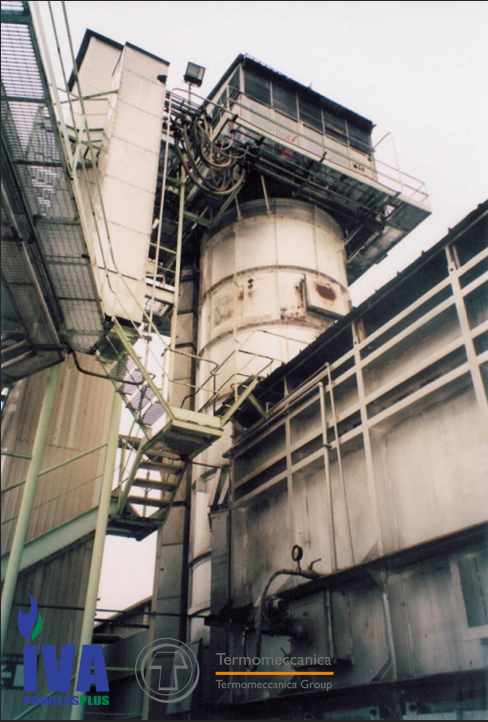

1. Type: Horizontal Static Chamber with Injection nozzles for Waste liquid and toroidal distributor for Vents

• Source of wastes: Pharmaceutical Wastes
• Liquid Capacity: up to 2500 kg/h
• Vent Capacity: up to 10000 Nm3/h
• Oxidation Temperature: up to 1100 °C
• Residence Time: 2 s
• Oxygen Concentration Flue Gases: 6 % vol.
• Plant sections: Steam Boiler, Flue Gases Treatment

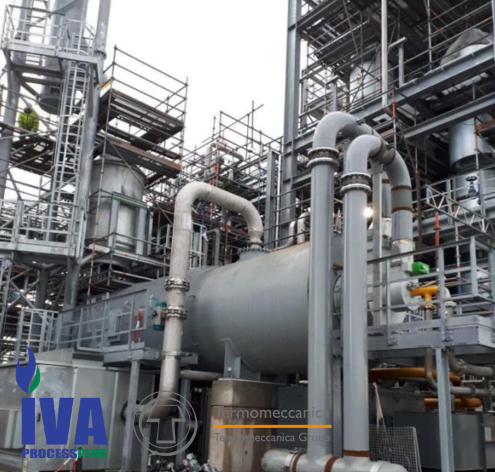

     2. Type: Horizontal Static Chamber with Injection nozzles for Waste liquid and toroidal distributor for Vents

• Source of wastes: Solvent Stripping from Wastewater
• Liquid Capacity: up to 2500 kg/h
• Vent Capacity: up to 10000 Nm3/h
• Oxidation Temperature: up to 950 °C
• Residence Time: 2 s
• Oxygen Concentration Flue Gases: 6 % vol.
• Plant sections: Steam Boiler, NOx thermal reduction with Ammonia injection, Dry Treatment for Flue Gases
